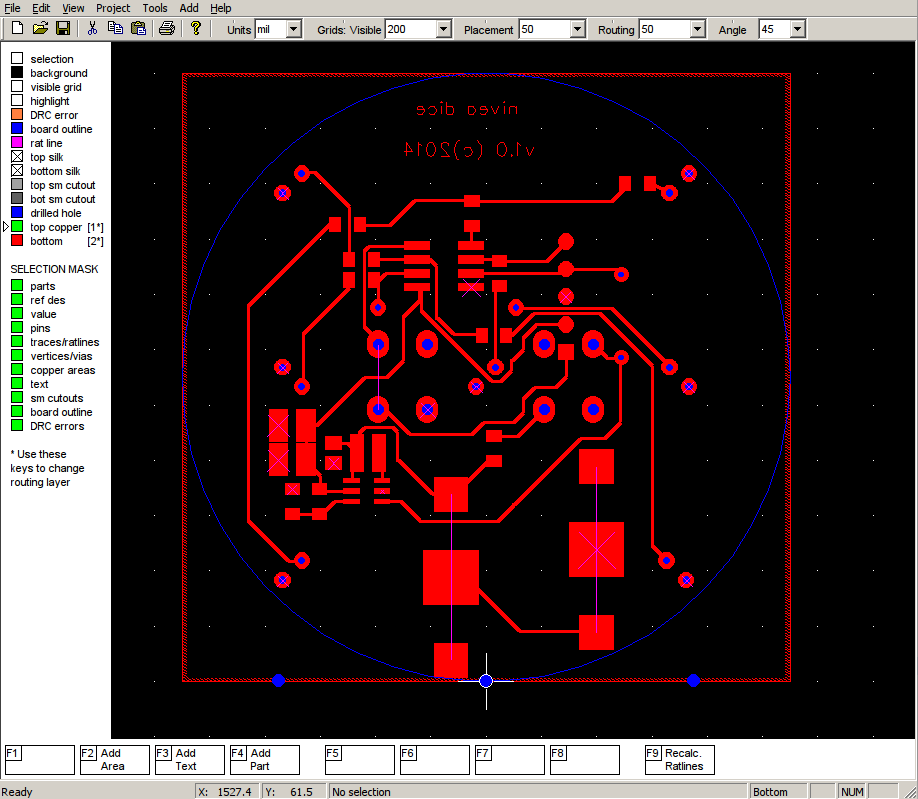

First, check our design. Board must be centered by Y-axis as is shown in Figure 2.3, “Project in FreePCB”. It is quite convenient to prepare holding holes and one hole in origin point. In this case there are placed at bottom.
